HI97762C เครื่องวัดคลอรีนอิสระ (Free Chlorine) Ultra Low Range แบบพกพามีความถูกต้องแม่นยำและใช้งานง่าย ออกแบบมาให้พกพาเเละใช้งานสะดวกมีความถูกต้อง
เครื่องวัดใช้วิธีการ 4500-CL G, วิธี Colorimetric DPD จากวิธีการมาตรฐาน Standard Methods for the Examination of Water and Wastewater
ย่านการวัดคลอรีนอิสระ (Free Chlorine Ultra Low Range) 0.000 to 0.500 mg/L (ppm) มีความละเอียด 0.001 mg/L มีความถูกต้อง ±0.020 mg/L ±3%
มีฟังก์ชั่น CAL Check ™ พิเศษที่ใช้สำหรับการตรวจสอบสมรรถนะและการสอบเทียบ คุณภาพสูงจาก USA มีใบรับรองการสอบเทียบ (Certificate) จากโรงงาน มีคู่มือการใช้งานภาษาไทย ขายราคาถูก จัดส่งทั่วไทย
Specification HI96762C
| SKU | HI97762 | |||
|---|---|---|---|---|
| Product Name | Free Chlorine Ultra Low-Range Portable Photometer | |||
| Free Chlorine Range | 0.000 to 0.500 mg/L (as Cl2) | |||
| Free Chlorine Resolution | 0.001 mg/L | |||
| Free Chlorine Accuracy | ±0.020 mg/L ±3% of reading at 25°C | |||
| Chlorine Method | adaptation of Standard Method for the Examination of Water and Wastewater, 23rd Edition, 4500-Cl G, DPD Colorimetric Method | |||
| Photometer/Colorimeter Light Source | LED with 525 nm bandpass filter | |||
| Photometer/Colorimeter Light Detector | silicon photocell | |||
| Bandpass Filter Bandwidth | 8 nm | |||
| Bandpass Filter Wavelength Accuracy | ±1.0 nm | |||
| Cuvette Type | round 24.6 mm diameter (22 mm inside) | |||
| GLP | yes | |||
| Display | 128 x 64 pixel B/W LCD with backlight | |||
| Logging Memory | 50 readings | |||
| Battery Type/Life | 1.5 V AA Alkaline (3 pcs.) / > 800 measurements (without backlight) | |||
| Automatic Shut-Off | after 15 minutes of inactivity (30 minutes before a READ measurement) | |||
| Environment | 0 to 50°C (32 to 122°F); 0 to 100% RH (IP67) | |||
| Weight | 380 g (13.4 oz.) | |||
| Dimensions | 142.5 x 102.5 x 50.5 mm (5.6 x 4.0 x 2.0") | |||
| Ordering Information | HI97762C is supplied with CAL Check standards, cuvettes (2), caps (2), plastic inserts for cuvette, (2), scissors, cuvette cleaning cloth, 1.5V AA batteries (3), instruction manual, and instrument quality certificate packaged in a rugged, thermoformed, carrying case. |

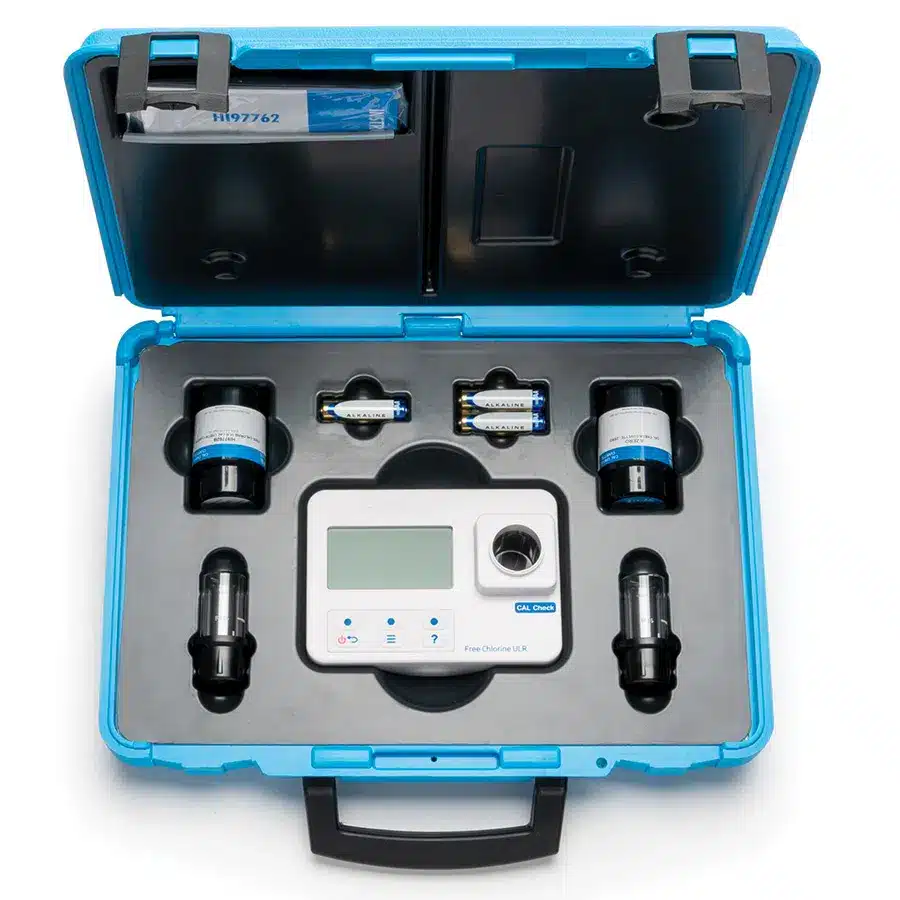

HI97762C พร้อมชุดอุปกรณ์และใบรับรอง Certificate จาก USA
PDF Catalog
As one of the most common forms of disinfection, chlorine improves water quality by destroying disease-producing microorganisms, and by reacting with other organic and inorganic substances.
There are instances when water needs to be de-chlorinated and then checked to determine if the chlorine concentration is beneath a threshold level. The HI97762 is a portable photometer designed to monitor very low levels of chlorine. The HI97762 uses an adaptation of method 4500-CL G, DPD colorimetric method from the Standard Methods for the Examination of Water and Wastewater.
When the HI95762-0 DPD reagent is added to a sample containing free chlorine, the sample will turn a pink hue; the greater the concentration, the deeper the color. HI97762 measures free chlorine from 0.000 to 0.500 mg/L (ppm).
The HI97762 has an innovative optical system that offers superior performance in accuracy, repeatability, and the short amount of time it takes to perform a measurement.
This compact, waterproof meter is extremely user friendly with a tutorial mode that walks the user graphically, step by step, in performing a measurement. The use of a backlit dot matrix LED allows the use of virtual keys which makes the operation of the meter very intuitive including selecting different units of measure, reviewing GLP data, recalling the last 50 measurements, and customizing the meter to user preferences.
