PM6708 เป็นเครื่องตรวจวัดระดับเสียง มีย่านการวัด 30～130dB at A,35～130dB at C มีความถูกต้อง ± 5dB มาพร้อม จอ LCD และ backlight สะดวกในการอ่านค่า ตัวเครื่อง สามารถเก็บข้อมูล การวัดย้อนหลังได้ 100 หน่วย
เป็นอุปกรณ์สำหรับมืออาชีพที่สามารถวัดระดับเสียงโดยรอบเช่นระดับเสียงรอบโรงงานโรงงาน, โรงเรียน, ที่อยู่อาศัย, สำนักงาน และ ถนน ฯลฯ ได้มาตราฐาน IEC651 Type 2 และ ANSI 51.4 Type 2 สินค้าคุณภาพ ขายราคาถูก จัดส่งทั่วไทย
PM6708 30 Decibel to 130
Specification:
- Sound pressure accuracy: ± 1.5 dB (sound pressure standard, 94 dB @ 1KHz); ± 5 dB (sound pressure standard, 94 dB @ 8KHz)
- Sound pressure frequency response: 30Hz – 8KHz
- The dynamic range of sound pressure: 50 dB (for each measurement gear level)
- Sound pressure measurement scope: 30-130 dB A, 35-130 dB C
- Sound pressure frequency weighting characteristics: A and C characteristics
- Digital display: 4-digit, resolution: 0.1 dB, sampling rate: 2 times/sec
Digital Sound Level Meter complies with IEC651 type 2 and ANSI S1.4 type 2. It also could be called as DB reader, phonometer or SPL meter, accumulate sound level value data for noise dosimeter, can be used as a noise monitor testing sound intensity to reduce Noise pollution, avoiding the risk to hearing damage.
But it is account for the relative loudness perceived by the human ear. The value will fluctuate according to the different distance sound source.
Whether you’re monitoring workplace machinery, installing audio or alarm systems, or handling product noise certification and reduction.
There are two weighting modes for the mini Decibel Meter, A and C frequency-weighting mode, there is a A/C key press for selection.
- Decibel A is for measuring the sound level within the human audible range, the test range is 30-130 dBA, it’s used for the protection of workers against noise-induced hearing loss.
- Decibel C is for measuring the actual sound level, which can be sensitive to the higher frequencies human couldn’t hear, the C weighting is most meaningful for describing the frequency response of real world sounds. And it’s test range is 35-130 dBC. But we are more sensitive to the lower frequencies, so if we use C weighting, the sound level will be higher than acoustic sound.
LCD Dual Reading Displays

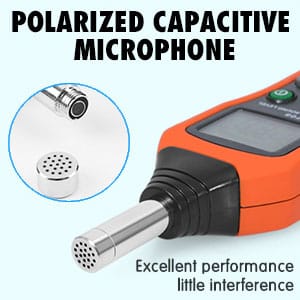

Capacitive microphone
High Stability and Accuracy
Compact Lightweight Design
Specification PM6708
- Sound pressure measurement scope 30～130dB at A,35～130dB at C
- Sound pressure frequency response 30Hz～8kHz
- Sound pressure frequency weighting A and C characteristics
- Accuracy ±1.5dB (sound pressure standard,94dB@1kHz) ±5dB(sound pressure standard,94dB@8kHz)
- Dynamic range of sound pressure 50dB (for each measurement gear level)
- Dynamic characteristic of sound pressure FAST 125ms,SLOW 1sec
- Microphone polarized capacitive microphone
- Digital display 4-digit, resolution；0.1dB,sampling rate;2times/sec
- Bar graph display Each analog bar represents 1dB,Sampling rate is 20 times/sec
- Measurement gear level 30～80dB,40～90dB,50～100dB,60～110dB, 70～120dB, 80～130dB,6 gear levels in total
- Automatic shifting gear level Microcomputer will automatically select the best gear lever in the range from 30 to 130dB
- Fast/Slow Selection
- Data Hold
- Back Light
- MAX/MIN
- Data storage 100 groups
- Power supply 4×1.5V AAA Batteries
- Weight 184mm×60mm×29mm
- Size Approx. 190g
- Safety Rating EN61010-1,EN61326-1
The Decibel Meter lets you know if you’re being exposed to dangerously high frequencies, and make it easy for you to jot down sound frequencies for future reference.
And with simple intuitive buttons, like the backlight LCD display and manual/auto-shutoff function, we make this decibel meter reader’s navigation stress-free, so you can block out the background noise and focus on the bigger things.
Sound Level Meter is helpful in our life, it’s a good tool for people’s health
