เครื่องวัด COD และสารละลายในน้ำสำหรับน้ำเสียรุ่น HI83224 สำหรับการวัดค่าความต้องการออกซิเจน Chemical Oxygen Demand (COD) ย่านการวัดค่า COD 0 to 15000 mg/L และการวัดค่าแอมโมเนีย คลอรีน ไนเตรท ไนโตรเจน ฟอสฟอรัส เป็นต้น ด้วยความถูกต้องแม่นยำและใช้งานง่าย
มีโหมดการทำงาน: อัตโนมัติ กึ่งอัตโนมัติและแบบ Manual การใช้งานง่ายมีคำแนะนำบนหน้าจอทีละขั้นตอนการเชื่อมต่อ PC ผ่าน USB มีเครื่องอ่านบาร์โค๊ด (Barcode) ในตัวสามารถอ่านบาร์โค๊ดจากหลอดทดลองได้ คุณภาพสูงมีใบรับรองการสอบเทียบ (Certificate) จากโรงงาน มีคู่มือการใช้งานภาษาไทย ขายราคาถูก

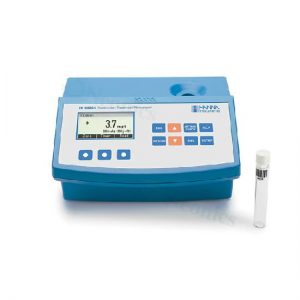

HI83224 benchtop photometer measures 15 measurement methods for different key water quality parameters in addition to chemical oxygen demand (COD) in 3 different ranges.
The HI83224 features a barcode reader that can be used for barcoded sample vials. The reader scans each vial and automatically identifies the method and range, eliminating potential errors and simplifying the testing process.
This photometer features an advanced optical system that uses special tungsten lamps, narrow band interference filters, and silicon photodetectors to ensure accurate photometric readings every time.
The HI83224 uses a graphic backlit LCD that allows for an intuitive user interface, offering a tutorial mode that gives a step-by-step procedure for performing a measurement.
The result obtained can be displayed in various chemical forms based on the user’s preference. For tracking of data, results can be logged and then exported to a Windows® compatible PC using the HI92000 software and HI920013 USB cable.
Features at-a-glance
- Barcode Recognition – Automatic recognition of bar coded samples is an exciting feature of the HI83224. This advanced meter scans each vial inserted into the vial holder and automatically identifies the sample method and range. The barcode has four digits: the first two digits are for parameter identification and the second two digits are for reagent lot ID.
- Vial Rotation – During the measurement phase of the analysis, the state-of-the-art vial rotator spins the vial to identify the method via the barcode, then rotates while taking a number of absorbance readings. The instrument then converts the readings to concentration units and displays the result on the easy to read screen.
- Improved Accuracy – Using the “average” function further improves reading accuracy. When enabled in the setup menu, the instrument takes 180 absorbance readings through the vial as it rotates. Each individual reading represents a measurement through a new optical path. Averaging the absorbance readings minimizes errors due to vial inconsistencies.
- Method Verification – A dedicated METHOD CHECK button is available to quickly verify the vial barcode, eliminating the potential for vial confusion or incorrect sample readings.
- Backlit Graphic LCD Display – The HI83224 features an adjustable backlit graphic display with virtual keys and on-screen help to provide for an intuitive user interface.
- Data Logging – Users can store up to 200 readings by simply pressing the LOG key. Logged readings are just as easily recalled by pressing the dedicated RCL button. Stored data includes parameter, test results, sample number, lot number, instrument ID, date and time.
- PC Connectivity – Logged readings can be quickly and easily transferred to a PC via USB using the HI92000 Windows® compatible software.
- Result Conversion – Eliminates confusion by automatically converting readings to other chemical forms. Common conversions are available at the touch of a button.
- On-screen Tutorial – With the tutorial function enabled, short guides relating to the current operation are displayed. At any stage in the setup or measurement process, the dedicated HELP button is also available to show contextual help.
- Built-in Timer – Display of time remaining before a measurement is taken. Ensures that all readings are taken at the appropriate reaction intervals for the test being performed.
- Error Messages – Messages on display alerting to problems including barcode error, wrong vial, and different reagent lot.
- Cooling Lamp Indicator – To maintain the desirable wavelength to be used for absorbance, it is necessary to ensure components are not overheated from the heat generated by the tungsten lamp. Each photometer is designed to allow a minimal amount of time for components to cool. The cooling lamp indicator is displayed prior to a reading being taken.
- Units of Measure – Appropriate unit of measure is displayed along with reading.
Method Selection
Users can easily select any one of the 15 measurement methods via the dedicated METHOD button.
Data Logging
Up to 200 measurement readings can be logged and recalled for future use.
Log Recall
Logged data can easily be recalled and the chemical form can be converted at the touch of a button.
Specification
| SKU | HI83224-02 |
|---|---|
| Product Name | Wastewater Multiparameter Benchtop Photometer with COD and Barcode Recognition |
| pH CAL Check (electrode diagnostics) | yes |
| Ammonia Range | Low Range |
| Ammonia Resolution | Low Range |
| Ammonia Accuracy | Low Range |
| Ammonia Method | Adaptation of the ASTM Manual of Water and Environmental Technology, D1426-92, Nessler method. |
| Chemical Oxygen Demand Range | Low Range |
| Chemical Oxygen Demand Resolution | Low Range and Medium Range |
| Chemical Oxygen Demand Accuracy | Low Range |
| Chemical Oxygen Demand Method | Adaptation of the USEPA 410.4 approved method for the COD determination on surface waters and wastewaters. |
| Free Chlorine Range | 0.00 to 5.00 mg/L |
| Free Chlorine Resolution | 0.01 mg/L |
| Free Chlorine Accuracy | ±0.03 mg/L or ±4 % of reading |
| Total Chlorine Range | 0.00 to 5.00 mg/L |
| Total Chlorine Resolution | 0.01 mg/L |
| Total Chlorine Accuracy | ±0.03 mg/L or ±4 % of reading |
| Chlorine Method | Adaptation of the EPA method 330.5 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-Cl G, DPD method. |
| Nitrate Range | 0.0 to 30.0 mg/L NO3--N |
| Nitrate Resolution | 0.1 mg/L |
| Nitrate Accuracy | ±1.0 mg/L or ±5 % of reading |
| Nitrate Method | Chromotropic acid method. |
| Nitrogen, Total Range | Low Range |
| Nitrogen, Total Resolution | Low Range |
| Nitrogen, Total Accuracy | Low Range |
| Nitrogen, Total Method | Chromotropic acid method. |
| Phosphorous, Acid Hydrolyzable Range | 0.00 to 1.60 mg/L |
| Phosphorous, Acid Hydrolyzable Resolution | 0.01 mg/L |
| Phosphorous, Acid Hydrolyzable Accuracy | ±0.05 mg/L or ±5 % of reading |
| Phosphorous, Acid Hydrolyzable Method | Adaptation of the EPA method 365.2 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-P E, ascorbic acid method |
| Phosphorous, Reactive Range | Low Range |
| Phosphorous, Reactive Resolution | Low Range |
| Phosphorous, Reactive Accuracy | Low Range |
| Phosphorous, Reactive Method | Low Range |
| Phosphorous, Total Range | Low Range |
| Phosphorous, Total Accuracy | Low Range |
| Phosphorous, Total Resolution | Low Range |
| Phosphorous, Total Method | Low Range |
| Photometer/Colorimeter Light Source | tungsten lamps with different narrow band interference filters |
| Photometer/Colorimeter Light Detector | silicon photocell |
| Display | Liquid Crystal Display (LCD) |
| Logging Memory | 200 samples |
| Connectivity | USB |
| Power Supply | 230 VAC or 115 VAC power adapter |
| Environment | 0 to 50°C (32 to 122°F); max 90% RH non-condensing |
| Weight | 2.3 kg (5.1 lbs) |
| Dimensions | 235 x 212 x 143 mm (9.2 x 8.34 x 5.62”) |
| Ordering Information | HI83224 is supplied with sample vials and caps (10), vial cleaning cloths (4), scissors, and instruction manual. |
